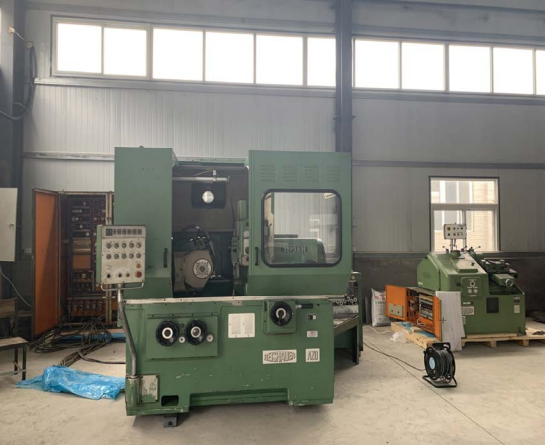

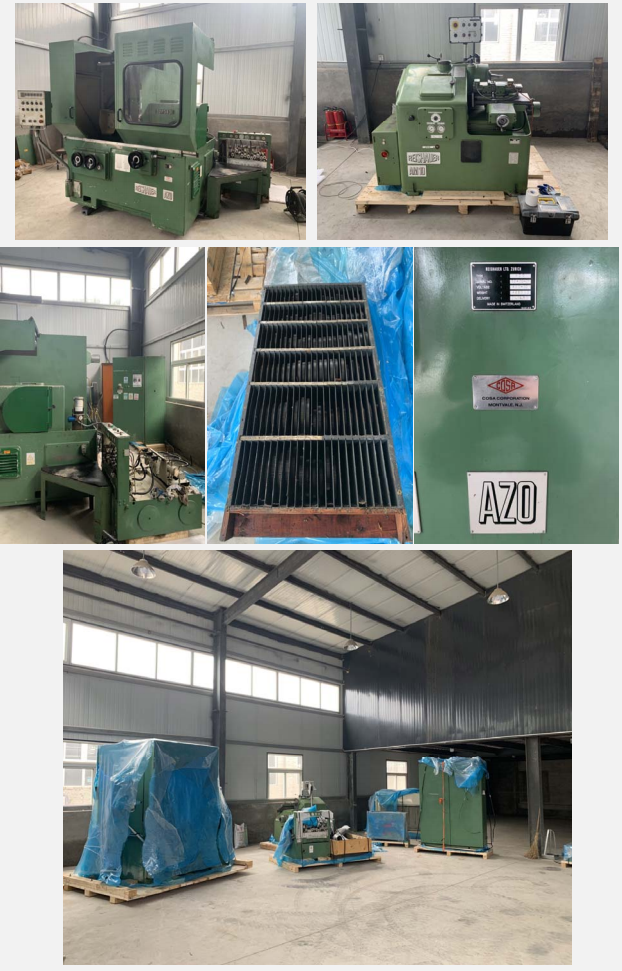

生产厂家 / Manufacturer: | 莱斯豪尔(Reishauer) |
机床型号 / Machine model: | AZO |
出厂日期 / Year of produce: | 1980 |
机床编号 / Serial number: | 52400-21 |
控制系统 / Control system: | Conventional |
最小磨削齿根圆直径 / Min. root diameter: | 10 mm |
最大磨削齿顶圆直径 / Max. roof diameter: | 330 mm |
最大齿轮宽度 / Max. gear width: | 180 mm |
装夹范围 / Range of clamping: | 145~420 mm |
最大工件重量(含夹具) / Max. workpiece weight (with fixture | ) ~60 kg |
齿数范围 / Range of teeth: | 12~260 |
模数范围 / Range of modul: | 0.5~6 |
最大螺旋角 / Max. helix angle (β): | ±45° |
砂轮直径 / Grinding wheel diameter: | 270~350 mm |
砂轮宽度 / Grinding wheel width: | 62/84/104 mm |
砂轮孔径 / Grinding wheel bore: | 160 mm |
主轴转速 / Spindle speed: | 1900 rpm |
工件每转进给 / Workpiece feeding per rotation: | 0.4~3.2 mm |
工件每冲程砂轮进给 / Grinding wheel feeding per workpiece st | 0.01~0.08 mm |
总进给 / Total infeed: | 0.8 mm |
工作电压和频率 / Working voltage and frequency: | 460 V / 60 Hz |
总连接负载 / Total connecting power: | 30 kVA |
机床毛重 / Machine gross weight: | ~5000 kg |
机床外形尺寸 / Machine dimensions (L x W x H): | 2990 x 2300 x 2100 mm |
随机附件 / Peripheral equipments and accessories: | 电控柜及全部线缆 / Electric cabinet and all connecting cables. |
| 外置独立液压站 / Standalone outlay hydraulic station. |
| 油雾吸收装置 / Oil-mist exhauster. |
| 冷却过滤有油箱 / Coolant and filtration unit. |
| 油冷机 / Oil chiller. |
| 泵输送单元 / Pump transit unit. |
| AM10砂轮修整机 / AM10 wheel dressing machine. |
| Fassler DSA砂轮修整器 / Fassler DSA grinding wheel dresser. |
